X9 9Ton Wheeler Crawler amphibious Excavator Digger Mobile Spider
Brief Introduction:
X9 Wheel-crawler excavator is with national invention patent which is totally researched and developed by our company, the first design in the world. Convenient moving, fast travelling speed, quick transferring from wheels to track walking. The front tire axle can be quickly disassembled when required.
Feature:
Wheel-Crawler Excavator X9, with CE ISO certificates. New design, patent products, running on the wheel, working on the crawler, wheel and crawler is easy to change each other, one city transport, no need the truck again, very convenient, with good market now.
9ton, GERMANY REXROTH pump, USA EATON swing motor, traveling motor, South Korea SUNJIN valve/ Joystick, A/C cab for choose, Radio, USB, 0.32m3 bucket, Overall dimension: 6570x2120x2982 mm, Running on wheels, Working on track.
Products Advantage:
Yanmar Engine
-- Using imported engine, stable and durable, this engine features low noise, low vibration, and easy maintenances for main parts.
Strong power hydraulic system
-- Main pump, valve, swing motor and travel motor imported with reliable quality.
Control monitor
--Electronic monitoring using a dot matrix type advanced multifunctional large screen liquid crystal display, electronic throttle control system has the function of throttle control, automatic idle speed, overheat protection, speed acquisition.
Easy to maintain
--Large maintenance space, convenient for the periodic maintenance of various parts.
Delicate and beautiful appearance
--Streamlined design, smooth and beautiful appearance.
Products Specifications
| Dimension | | |
| Total length | |
| Boom 3.6m+Bucket arm 2m | 6570 |
| Total height | |
| Boom 3.6m+Bucket arm 2m | 2982 |
| Counter weight turning radius | 1836 |
| Hood height | 2104 |
| Counterweight ground clearance | 1120 |
| Upper structure width | 2000 |
| Cab Height | 2982 |
| Total Tire Width | 2120 |
| wheels up wheel gague | 270 |
| Wheel Tread | 3400 |
| Distance of swing center to rare wheel | 1682 |
| wheels down wheel gague | 3560 |
| Distance of swing center to rare wheel(wheels down) | 1767 |
| Rare wheel ground clearance(wheel up) | 300 |
| Tracks ground clearance(wheel down) | 330 |
| Total height(wheel down) | 3190 |
| Track wheel track | 2050 |
| Track width | 400 |
| Track outer width | 2160 |
| | | |
| Operating Range | | |
| working device | 3.6m+Bucket arm 2m |
| Max. digging radius | 6880 |
| Max.digging radius on ground | 6735 |
| Max.digging depth | 3772 |
| Max.digging height | 7130 |
| Max.dump height | 5220 |
| Min.turning radius | 2617 |
| Max.vertical digging depth | 3425 |
| Bucket digging force | 56 |
| Bucket arm digging force | 36 |
| | | |
| Specification | | Unit |
| Operating weight | | 8770kg |
| Bucket capacity | | 0.3m³ |
| Engine | Model | Yanmar 4TNV94L-BVBKC |
| Displacement | 3.054L |
| Engine Power/rpm | 33.7kW/2100rpm |
| Max.torque | 193.2~210.6N.m/1260±100rpm |
| Speed | Traveling Speed | 25km/h |
| Track traveling speed | 2.3km/h |
| Swing Speed | 9rpm |
| Max.grade Ability | 30° |
| Hydraulic and liquid capacity | Hydraulic system | Rexroth |
| Pump | variable capacity pump |
| Pressure | 25MPa |
| Displacement | 132L/min |
| Capacity of hydraulic tank | 175L |
| Capacity of fuel tank | 150L |
| Engine oil capacity | 12L |
Products Photos:
Our Services
1. All machines are with one year warranty, will send parts for free during the warranty period.
2. 24 hours every day, 7 days one week service
3. Perfessional service man give quick solution and support to all problems and questions.
4. Quick delivery time,
5. Professional sales team consisted of diligent, dynamic and innovative people with international version
6. Excellent logistics services ensuring timely delivery of consignments all over the world through ocean, airline, road and railway.
7. Well coordinated and expertly managed operation system adapted.
8. Expert team of after-sales professionals assuring all our products are under excellent maintenance and performance.

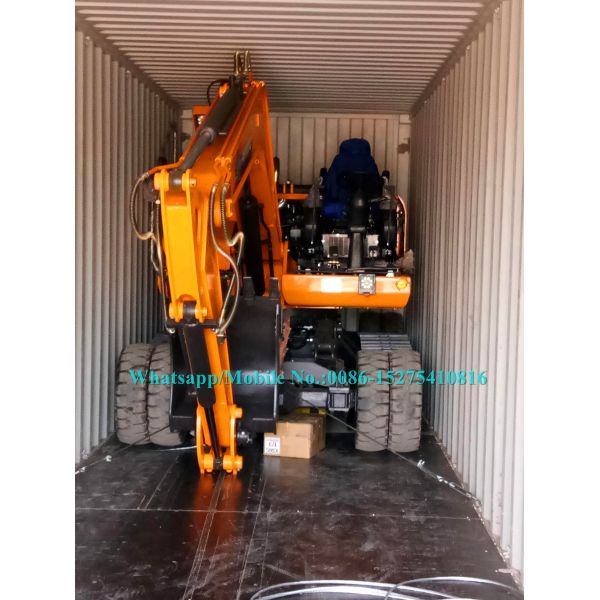

Shipment:
